Best PCB Fabrication & Turnkey PCB Assembly Manufacturer

We are specializing in prototype, small and middle volume PCB orders with best price and high quality

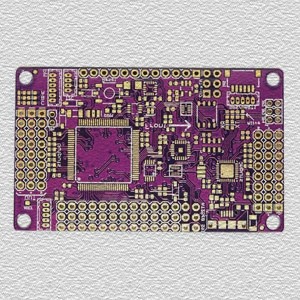

FR4 1.6 mm

Layers: 2

Thickness: 1.6mm

PCB size: 95*175mm

Materials: FR4

Soldermask: Purple

Surface finish: Immersion Gold

Trace width/space: 4/4 mil

Application: Industrial equipment

  • Product Detail

Product Detail:

FR-4 is a widely accepted international grade glass fiber reinforced epoxy resin laminate with flame retardant. After adding a copper layer on one side or each side of FR4, it becomes a copper clad laminate, which is the non-conductive core material of ordinary printed circuit boards (PCB). The printed circuit board with FR4 as the core material will be named "FR4 PCB".
PCBs are used to mechanically support and electrically connect electronic components using conductive paths, tracks, or signal traces etched from a copper clad laminate substrate. If no additional electronic components are added, the PCB is also called printed wiring board or etching wiring board.

Why choose us?

The FR4 board is a printed circuit board with a very wide range of applications. As we all know, it is cheaper than other laminated PCBs and has fire resistance. Therefore, these fiberglass epoxy laminates are in great demand in PCB assembly.
At Hecheng Fast Electronic Technology, we use high-quality materials and the best technology to manufacture. Therefore, we can make sure to present you the best FR4 printed circuit board.
We manufacture and deliver thousands of PCBs. View our complete list of products and services on the our website.
Hecheng Fast Electronic Technology promises to bring the highest quality FR4 PCB to our customers.
Contact us for quality, quality service, affordable prices and fast results.
