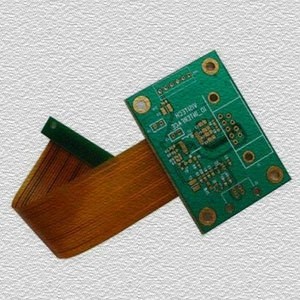

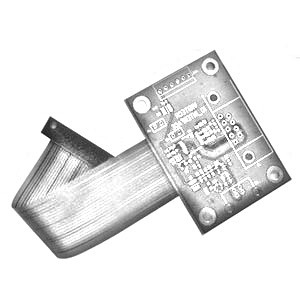

Polyimide Flex PCB

Layers: 4

Thickness: 2.8mm

PCB size:84mm*52mm

Materials: FR4

Soldermask: Green

Surface finish: Immersion Gold

Trace width/space: 4/4mil

Application: Satellite and Space-Based Applications

  • Product Detail

Product Detail:

Polyimide flexible circuits designed and manufactured by Hecheng Fast Electronic Technology are key components of major OEMs in technologically advanced markets such as aerospace and space applications. We provide single-layer and multilayer fine-pitch flexible circuits for applications that require interconnections in compact packages. Our all-polyimide flexible circuits are smaller, lighter, and can be seamlessly integrated into almost any form you need. Hecheng Fast Electronic Technology builds flexible circuits according to your exact specifications, with predictable performance and high reliability. Rigid-flex (a variant of flexible circuits) combines flexible circuits with rigid conductors (such as connectors or circuit boards) , Can be used in consumer electronics and other applications to aircraft guidance systems. Defense and aerospace are the most common applications for rigid-flex combinations, because they are usually the best way to reduce weight and sometimes the only way to make the equipment suitable for the final application.

Hecheng Fast Electronic Technology polyimide flexible circuit can achieve excellent performance:

1. Adhesive-free structure makes the circuit stronger, thinner, lighter and more flexible
2. Higher-density circuits: trace and space capabilities as low as 0.003" (may be restricted according to size and range)
3. The micro-hole size is as small as 0.001" diameter, suitable for high-density, 2-layer flexible circuits
4. Selective electroplating of gold and tin leads can realize multiple connection methods on the same all-polyimide flexible circuit
5. Alternative circuit layer materials such as beryllium, copper, stainless steel, and nickel can be used to achieve the best performance in unique applications
6. Surface mount technology (SMT) and through-hole assembly services. Package size as low as 0201 and 0.4mm pitch
